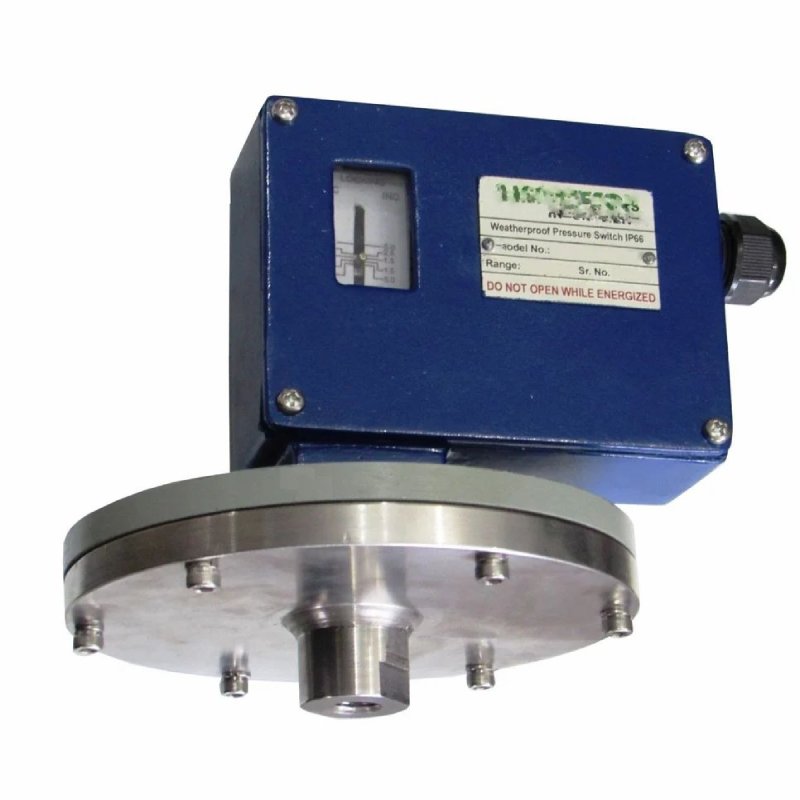

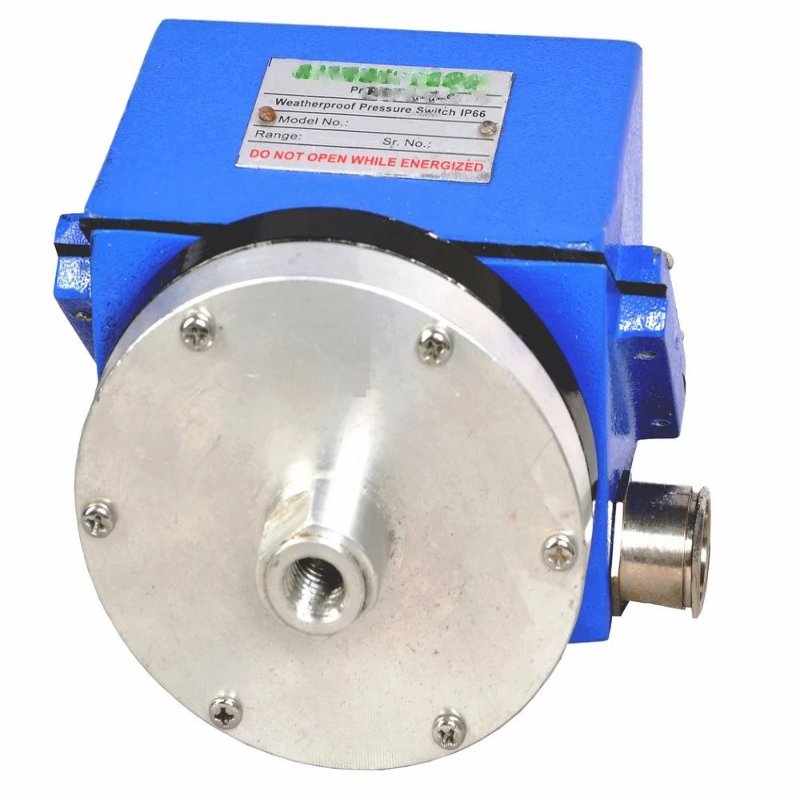

Boiler Furnace Draft Pressure Switch
Product Details:
| Minimum Order Quantity | 1 Piece |
| Application | BOILER DRAFT PRESSURE SWITCH |
| Pressure Range | -25 TO +25 MMWC |
| Reset Type | Auto Reset |
| Contact Material | Silver |
| Contact Type | SPDT |
| Media | Air |
| Enclosure Rating | IP65 |
| Electrical Connection | Screw Terminals |
| Contact System Type | SPDT |
| Range Setting | Adjustable |
| FURNACE PRESSURE SWITCH -25 / +25 , |
| PRESSURE RANGE : -25 to 25 MMWC |
| SENSING ELEMENTS : DIAPHRAGM TEFLON Or BUNA -N |
| WETTED PART : ALUMINIUM OR SS316 |
| ENCLOSURE : WEATHER PROOF |
| PROTECTION : IP 66 |
| ENCLOSURE ; DIE CAST ALUMINIUM |
| MICRO SWITCH : SPDT CONTACT- C- NO- NC |
| ELECTRICAL RATING : 5A 250V AC |
| REPEATABILITY : + – 1% OF FS |
| RANGE SETTING : INTERNAL |
| DIFFERENTIAL : FIXED TYPE |
| PROCESS CONNECTION : ¼” NPT (F) |
| CABLE ENTRY :M20 x 1.5P with Polyamide cable gland |
| MOUNTING : DIRECT |
