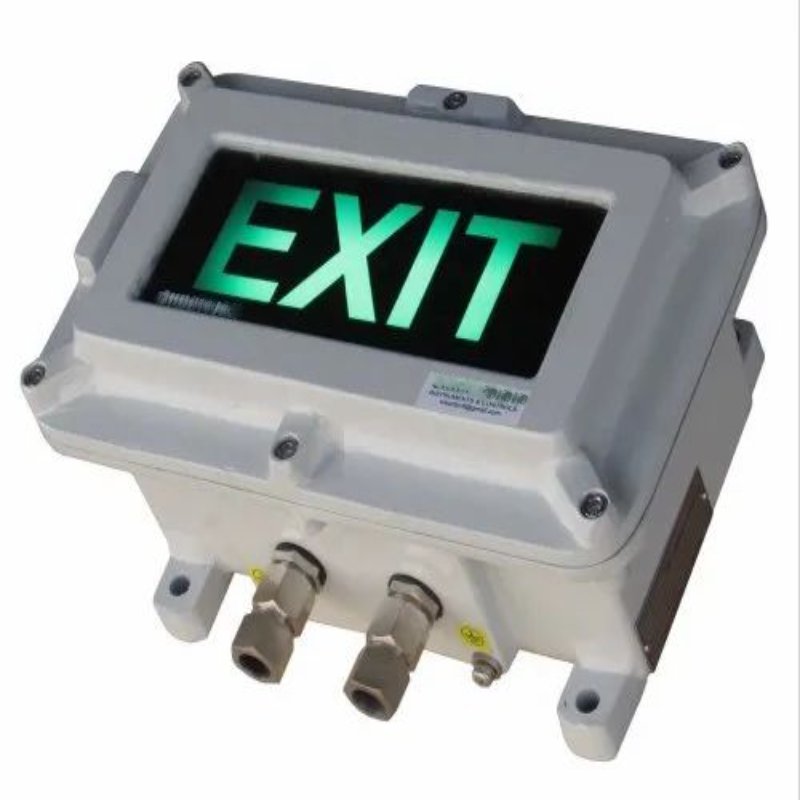

Flameproof Emergency Exit Light Sign
Product Details:
| Minimum Order Quantity | 2 Piece |
| Body Material | Metal |
| Shape | Rectangular |
| Usage/Application | Emergency Signals for Exit |
| Voltage | 240 V |
| Frequency | 50 Hz |
| Power Source | Electric |
Flameproof Emergency Exit light
CONSTRUCTION
Exd IIA IIB T6 As per IS/IEC 60079-1:2007,IS/IEC 60079-0:2004
Degree of protection: IP66 as per IEC 60529:2001
Area Classification: DIV /ZONE -1 & 2, Gas Group IIA IIB
Material of Construction: Aluminium Alloy LM6
Gasket: Neoprene O ring
Hardware: Stainless Steel
Earthing. : Earth Screw M6 – 2 Nos. Outside and 1 No Inside
Glass display – Toughened Type A provided with Exit sign.
Voltage input 110 to 240V AC for operation.
Mounting: Wall Mounting
ILLUMINATION
High efficient Red or Green display
ELECTRICAL COMPONENTS
Internal Circuit is designed and facilities with features, that Exit display remains ON when it will get power supply AC. Upon failure of the normal utility power, an internal solid state transfer switch automatically provides uninterrupted emergency operation for the display at least 120 minutes.
BATTERY
Light Exit Sign series is designed with Li battery with Inbuilt BMS that provides an emergency duration of 120 minutes.
