Flameproof Human Body Static Dissipater
Product Details:
| Minimum Order Quantity | 1 Piece |
| Measurement Range | Human Static resistance < 1 Mega Ohm |
| Display Type | LED |
| Power Source | Mains Power |
| Measurement Mode | Contact |
| Application | Industrial Use, Home Use |
| Warranty | 1 Year |
| Type | Flameproof Human body Static Dissipater |
| Model Name/Number | Model: SEHB-1 |
| Usage/Application | Explosion Risk Area |
| Temperature class | T6 |
Product Description
Flameproof Human Body Static Dissipater
Model: SEHB-1
Housing
v Flameproof Ex d IIA IIB T6 As per IS/IEC 60079-1:2007,IS/IEC 60079-0:2004
v Degree of protection: IP66 as per IEC 60529:2001
v Temperature Class T6
v Enclosure: Die cast Aluminium
v Certification Type NO: STJ30030
v Power Supply: 110-230V AC
v Earthing:1 no inside & 2 nos. External
v Cable Entry: 5 nos.
v Mounting: With MS Hinge type bracket for machine mount / Wall mount
– Human body static dissipater with indicating lamp (Red – Green) with ON -OFF Switch
Application:
-The system measures static charge when human body entering the hazardous dust area (Explosion risk atmosphere)
– It dissipates & measure resistance of human body with respect to the earth and display through the indication lamp –PASS (Green) / FAIL (Red)

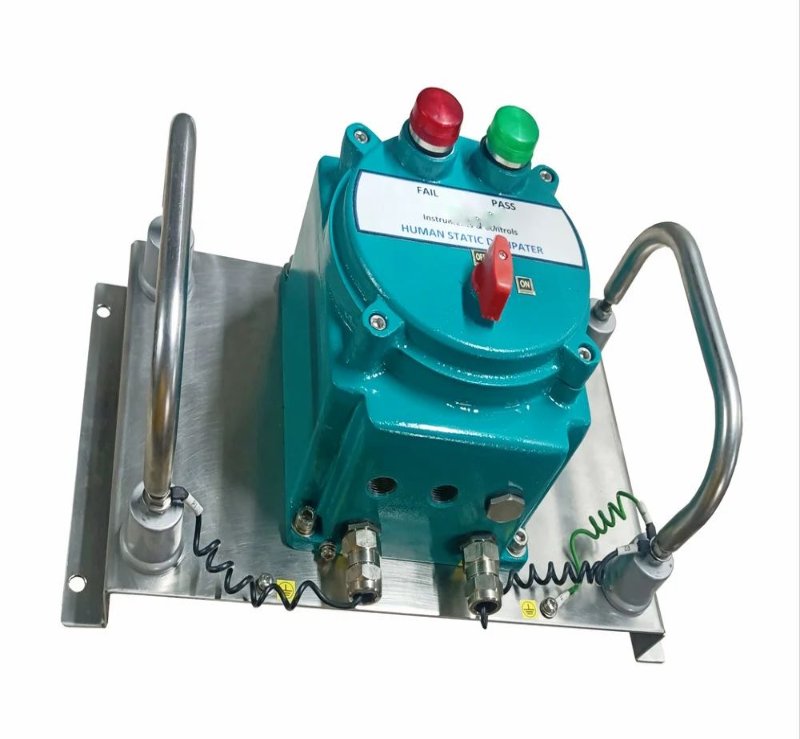

Model: HSD-01-I
v Flameproof Housing with HSD module, 2 indicating lamp and ON OFF Switch
v wall mounting plate & 2 handles – MOC SS304 duly wired from the systems.
v Power supply: 230V AC
v Max test Voltage: 1.5V DC
v System is to be looped with standard grounding
v 2 relay output
Technical Specification:
Range: 1 M ohms
Display Indicating lamp: Green : Pass -Value Less than 1 M ohms
Red : Fail – Value Greater than 1 M ohms
