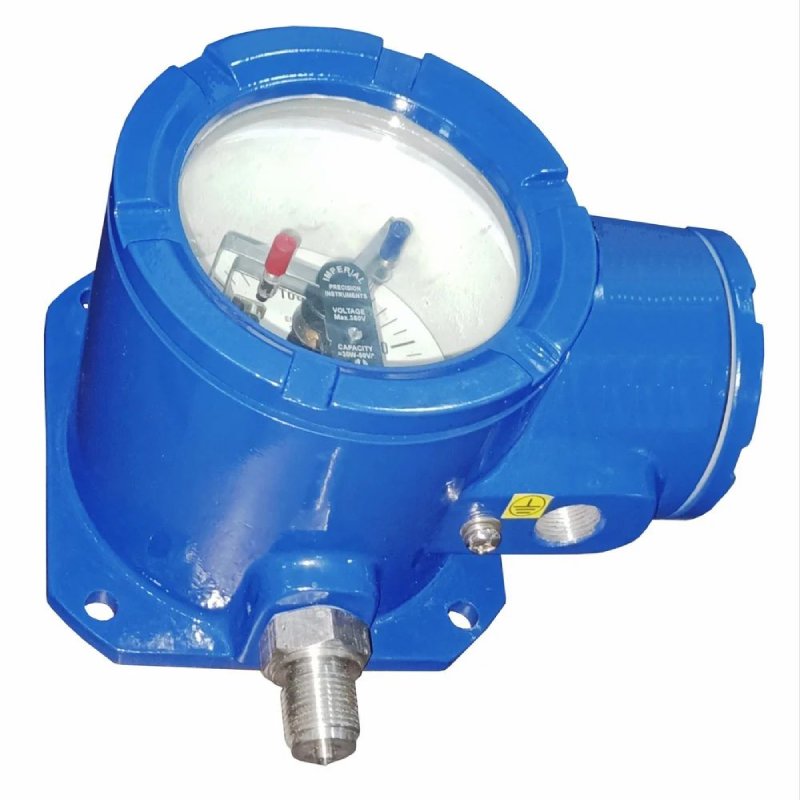

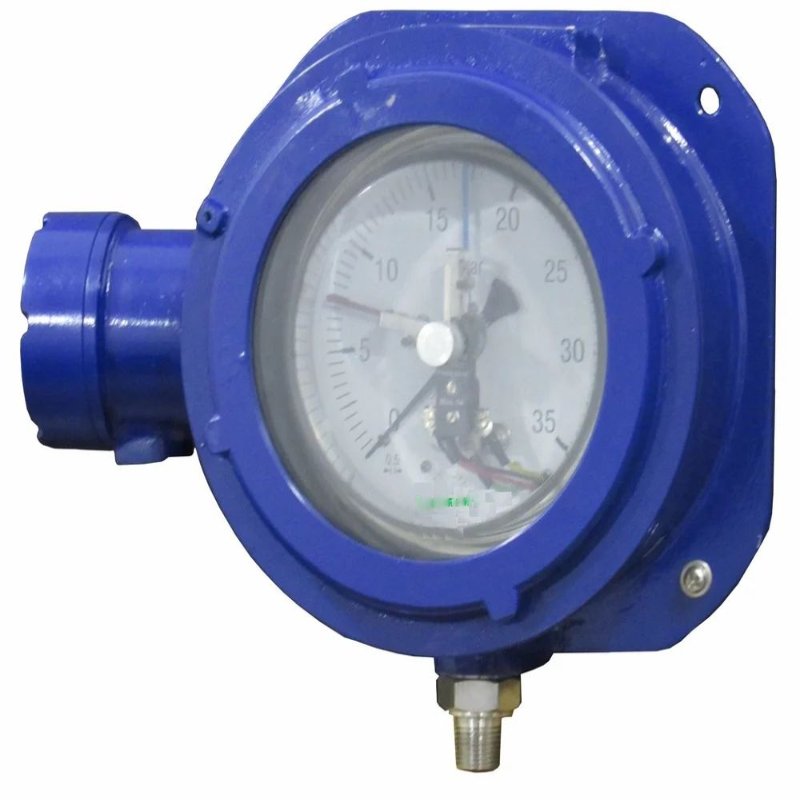

Flameproof Pressure Indicating Switch
Product Details:
| Minimum Order Quantity | 1 Piece |
| Pressure Range | 250 Bar |
| Media | Air |
| Contact Type | SPDT |
| Material to Measure | Gas, Liquid |
| Switch Type | Electronic |
| Setpoint Type | Adjustable Screw |
| Enclosure Rating | IP40 |
| Process Connection | G1/4 |
| Electrical Rating | 5 A 250 V AC |
| Mounting Type | Direct Mount |
Technical Specification.
Make : Smart-Tech
Product and Description: Flame proof pressure switch Exd IP67
Range: As per client requirements.
Dial Indication: 150MM Through Toughened Glass
Wetted Part: SS 316
Enclosure: Exd IIA IIB Certified as per IS/IEC60079-0:2004 & IS/IEC60079-1:2007
Hardware : Stainless Steel
Protection : IP67
Enclosure: cast Aluminum with Epoxy Powder coated.
Micro switch – 1SPDT /2 SPDT Contact
Electrical rating: 5A 250V AC ,
Repeatability: + – 1% of FS
Contact accuracy: +-2% of FS
Working Temp: 100 Deg C
Proof Pressure : 150% of FS
Differential : Fixed Type
Process Connection: As per Client requirements.
Cable entry: ½ NPT (F)
Mounting: Wall Mount
