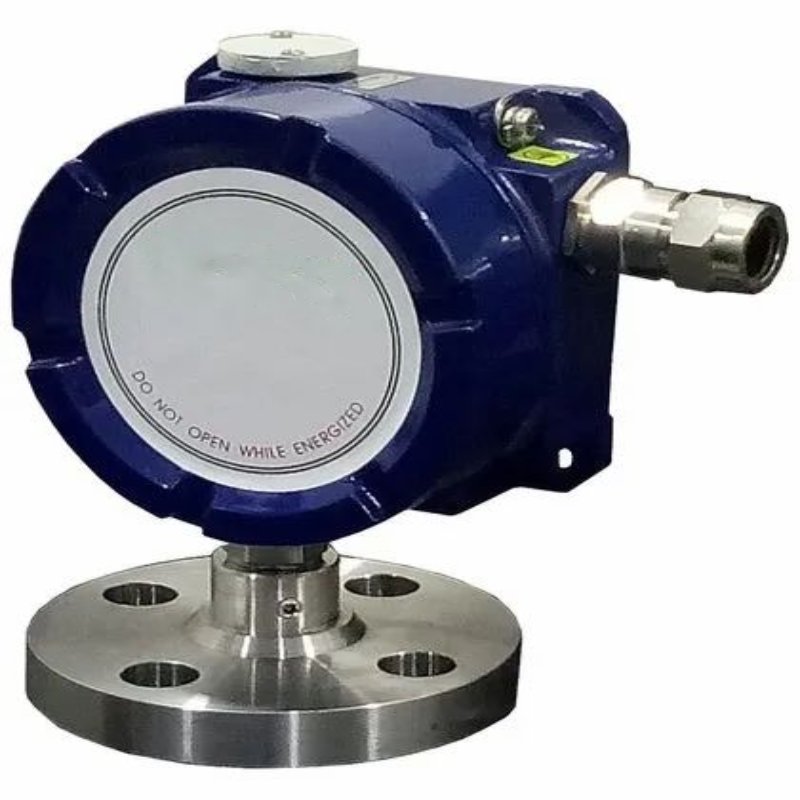

Flameproof Pressure Switch Flush Diaphragm
Product Details:
| Minimum Order Quantity | 01 Unit |
| Pressure Range | 35 Bar |
| Contact Type | SPDT |
| Media | Air |
| Enclosure Rating | Temperature Class T6 |
| Contact Material | Silver |
| Electrical Connection | Screw Terminals |
| Contact System Type | SPDT |
| Range Setting | External with Protection cap |
| Media Type | Liquid |
| IP Rating | IP66 |
| Technical Specification
Flameproof Pressure Switch- with Flush diaphragm seal |
| Model: As per pressure Range |
| Pressure Range: Up to 100 bar |
| Differential: Fixed / Adjustable |
| Proof Pressure : 150 % of FS. |
| Working Temp: 120 Deg. C |
| Set Pressure: Between 20 to 80% of FS. |
| Excess Setting: External but with internal locking screw. covered with PVC cap |
| Sensing element: Piston operated diaphragm SS316L. |
| Wetted Part: SS316 |
| Enclosure: Die cast Aluminium |
| Certification: Ex-d IIA IIB Certified as per IS/IEC60079-0:2004 & IS/IEC60079-1:2007 |
| Protection : IP67 as per IEC 60529: 2001 |
| Electrical rating: – 1SPDT Contact 1 NO +1NC 15A 250V AC , |
| No of micro switch:1 for STDT action |
| Repeatability: + – 1% of FS |
| Scale accuracy: +-1% of FS. |
| Enclosure seal: Neoprene O ring |
| Process Connection: Flange type / Thread type |
| Cable entry: 3/4″ ET X 1 Or M20 Or 1/2″ NPT |
| Mounting: Direct |
