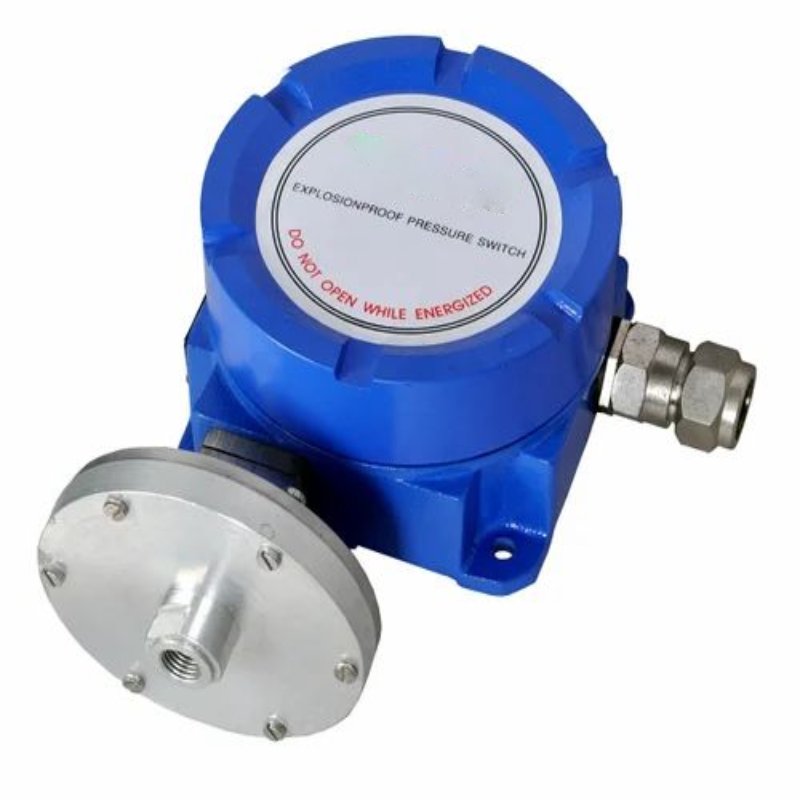

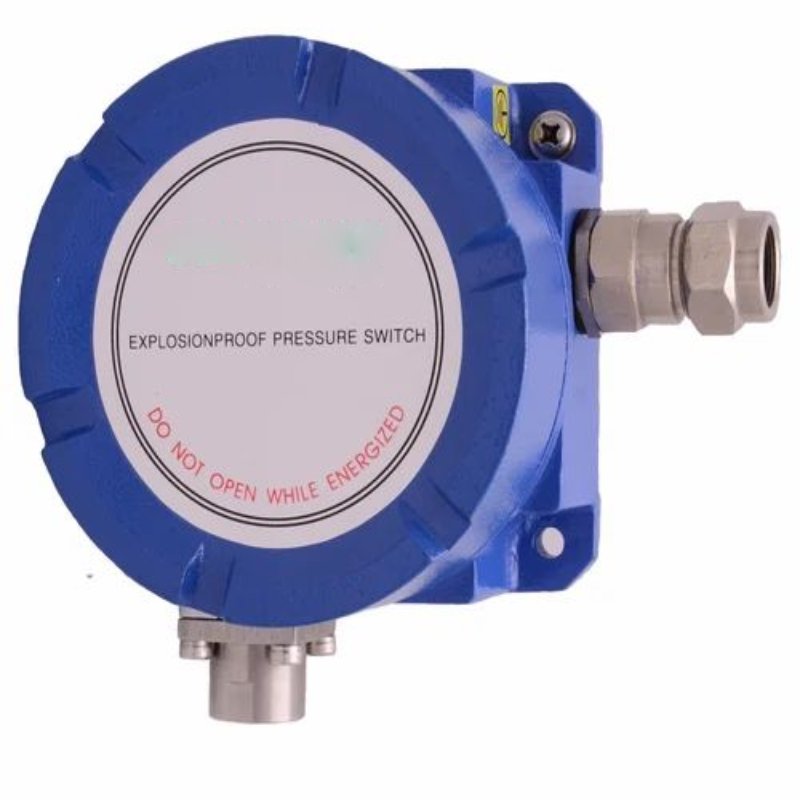

Flameproof Pressure Switches
Product Details:
| Minimum Order Quantity | 2 Piece |
| Pressure Range | 50 Bar |
| Media | Air |
| Contact Type | SPST NO |
| Contact Material | Silver |
| Switch Type | Electronic |
| Setpoint Type | Adjustable Screw |
| Enclosure Rating | IP40 |
| Electrical Connection | Screw Terminals |
| Contact System Type | SPDT |
| Range Setting | Adjustable |
We have been able to offer a genuine quality range of Flameproof Pressure Switches to the customers. These Flameproof Pressure Switches have scale field adjustable set point knob and are considered ideal to be used for variegated industrial applications. Our range is widely appreciated in the market for its excellent functioning and perfect design.
Following are the applications of these switches:
- Filter monitoring
- Level & flow measurement
- Machine & plant construction
- Chemical plant and its equipments
- Any Hazardous Area /Location.
| Technical Specification.:- |
| Product and Description: Flame proof pressure switch Exd IP67 |
| Product Code: STF |
| Range: As required |
| Sensing Elements: Diaphragm / Piston SS316L |
| wetted Part: SS 316 |
| Enclosure: Exd IIA IIB Certified as per IS/IEC60079-0:2004 & IS/IEC60079-1:2007 |
| Protection : IP67 As per IEC 60529:2001 |
| Enclosure: Die cast Aluminum |
| Micro switch – SPDT/ 2 SPDT Contact |
| Electrical rating:5A / 15A 250V AC , |
| Repeatability: + – 1% of FS
Scale accuracy: +-1% of FS |
| Differential : Fixed / Adjustable Type |
| Process Connection: 1/4″ BSP(F) |
| Cable entry: 3/4″ ET |
| Mounting: Wall / Pipe |
