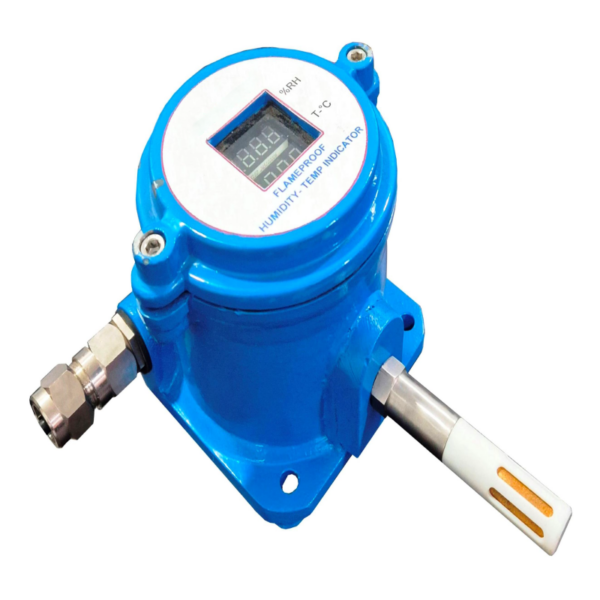

Flameproof Temperature + Humidity Indicator
Flameproof Temperature + Humidity Indicator
(Flameproof Thermo Hygrometer)
(Flameproof Thermo Hygrometer)
Technical Specification:
Exd IIA IIB T6 As per IS/IEC 60079-1:2007,IS/IEC 60079-0:2004
Degree of protection: IP66 as per IEC 60529:2001
Area Classification: DIV /ZONE -1 & 2, Gas Group IIA IIB
Material of Construction: Aluminium Alloy LM6
Gasket: Neoprene O ring
Hardware: Stainless Steel
Earthing. : Earth Screw M6 – 2 Nos. Outside and 1 No Inside
.Mounting: Wall Mounting
Cable Entry : ¾” ET X 2 Nos.
Certification Code: STJ30010
Power Supply: 24VDC / 300mA -OR 230V AC
Display: 2 X 4 Digit RED LED Display of Height 0.4” (1 Each for Humidity & Temperature)
Type of Product: Flameproof Temperature and Humidity Indicator
Range: Temperature: 0.0 to +60.0 Deg. C & 0.0 to 100.0% R.H. for Relative humidity
Exd IIA IIB T6 As per IS/IEC 60079-1:2007,IS/IEC 60079-0:2004
Degree of protection: IP66 as per IEC 60529:2001
Area Classification: DIV /ZONE -1 & 2, Gas Group IIA IIB
Material of Construction: Aluminium Alloy LM6
Gasket: Neoprene O ring
Hardware: Stainless Steel
Earthing. : Earth Screw M6 – 2 Nos. Outside and 1 No Inside
.Mounting: Wall Mounting
Cable Entry : ¾” ET X 2 Nos.
Certification Code: STJ30010
Power Supply: 24VDC / 300mA -OR 230V AC
Display: 2 X 4 Digit RED LED Display of Height 0.4” (1 Each for Humidity & Temperature)
Type of Product: Flameproof Temperature and Humidity Indicator
Range: Temperature: 0.0 to +60.0 Deg. C & 0.0 to 100.0% R.H. for Relative humidity
