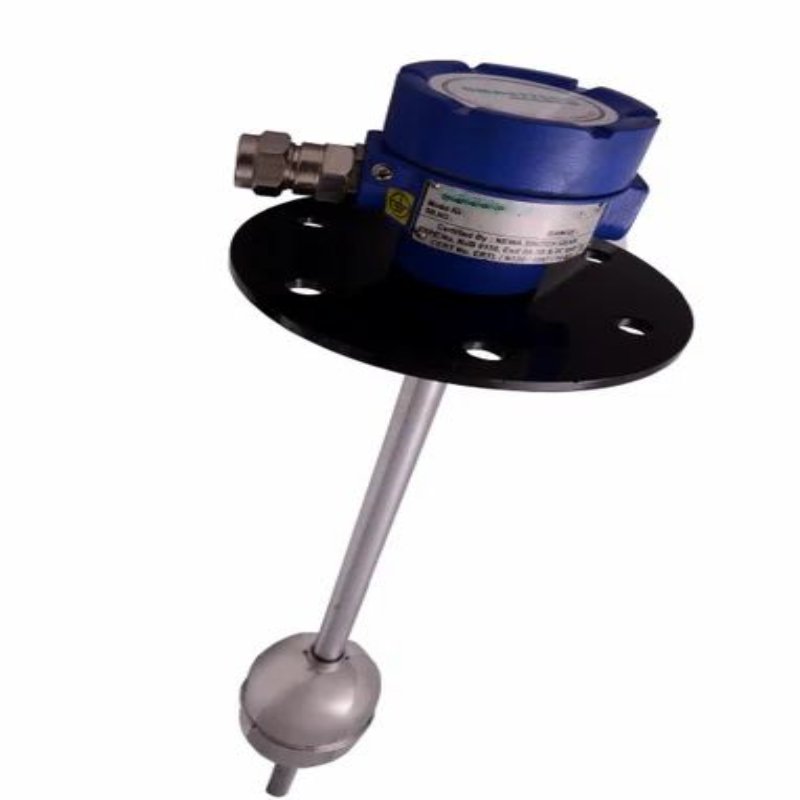

Flameproof Top Mounted Float Level Switch
Product Details:
| Minimum Order Quantity | 5 Piece |
| Float Material | Stainless Steel |
| Use Case | Any liquid level controlling |
| Contact Type | SPDT |
| Mounting Type | Top Flange or Threaded |
| Stem Length | Any length |
| Connection Size | Flange and threaded connecions |
| Max Current Rating | 0.5 A |
| Max Current | 24V DC |
| Mounting Option | Top Mount |
| Operating Voltage | 24 V DC |
We are widely known for offering high quality Top Mount Level Switches to the customers. These switches are highly demanded in the market for its excellent features like sturdy design, easy installation and fine finish. With the support of our wide distribution network, we make sure to deliver the ordered products at the clients’ end within the committed time frame.
Some of the applications of these switches are as follows:
- Oil Reservoir
- Sterilizing equipment
- Pump controls
Specification:
Enclosure: Exd IIA IIB & IIC as per IS/IEC 60079-1:2007 & IS/IEC 60079-0: 2004
Enclosure MOC : Aluminium die cast
Ingress Protection: IP67 As per IEC 60529:2001
MOC of STEM:SS304/SS316 or as per client requirements
Float MOC: SS304 /SS316
Specific gravity: 0.8
Set point : From the bottom of mounting as per client – 1 ,2 ,3 Or 4
Float size : As per client and specific gravity of fluid
Process connection: As per client
Electrical connection: 3/4″ET /1/2″ NPT /M20 X 1.5P
Working pressure: 10 Kg/cm2
Working Temperature: 130 Deg C
