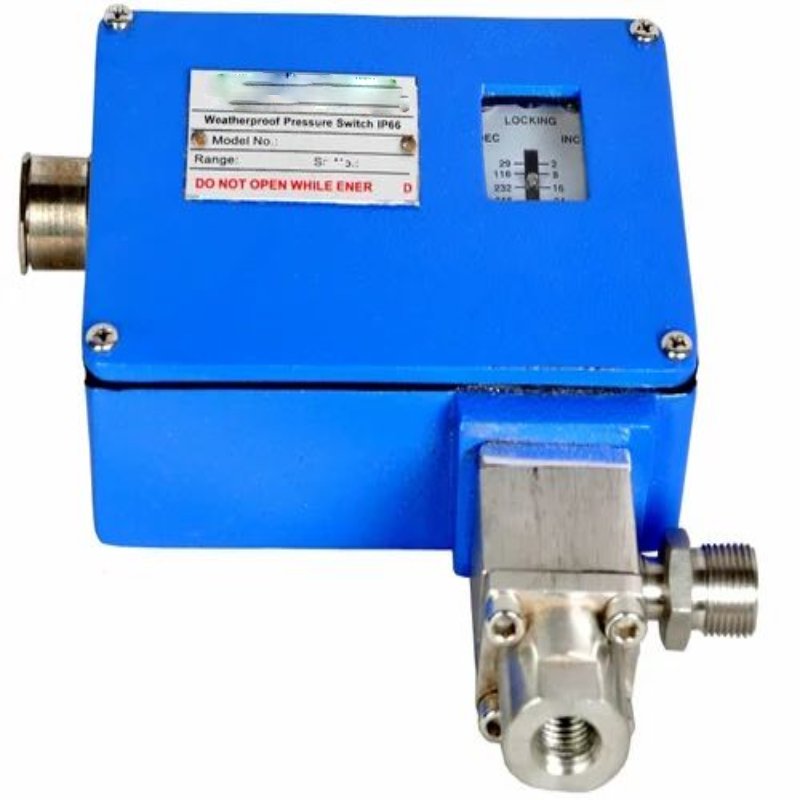

Weatherproof DP Switch (HP / LP)
Product Details:
| Minimum Order Quantity | 5 Piece |
| Enclosure Rating | IP55 |
| Pressure Range | 250 Bar |
| Media | Water |
| Contact Material | Silver |
| Body Material | Die Cast Aluminium |
| Contact Type | SPDT |
| Cable Entry | M16 |
| Electrical Connection | Screw Terminals |
| Contact System Type | SPDT |
| Range Setting | Adjustable |
We offer DifferentialPressure Switches (HP /LP) to our customers. Moreover, these products are highly demanded in the market for its precision adjustment, better stability and rugged design. certain well-defined parameters to gauge their defect-free nature.
Technical Specifications-
Technical Specifications-
- Range: As required
- Sensing Elements: SS Diaphragm/Piston SS316L
- Wetted Part: SS 316
- Enclosure: Weather proof
- Protection : IP66
- Enclosure: Die cast Aluminium
- Micro switch – SPDT/ 2SPDT Contact
- Electrical rating: 5A/15A250VAC
- Repeatability: + – 1 % of FS
- Scale accuracy: +-3% of FS
- Differential: Fixed Type
- Process Connection: 1/4″ NPT(F) (HP/LP)
- Cable entry: 3/4″ ET
- Mounting: Wall / Pipe / Direct
