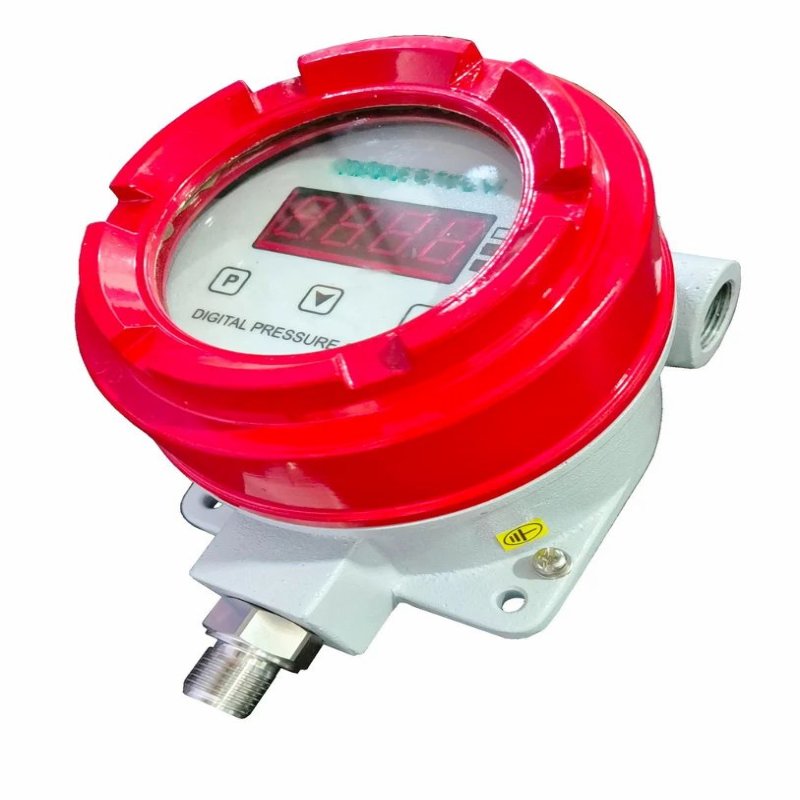

Flameproof Digital Pressure Switch
Product Details:
| Minimum Order Quantity | 2 Piece |
| Pressure Range | 400 Bar |
| Output Type | Relay and 4-20mA |
| Display | 4 Digit |
| Contact Material | Relay |
| Supply Voltage | 10–30 V DC |
| Process Connection | G1/2 |
| Enclosure Rating | IP66 |
| Contact System Type | SPDT |
| Range Setting | Adjustable |
| Media Type | All Media |
| Digital Flameproof pressure switch |
| Make: SMART TECH |
| Certification code: Ex db IIC T6 Gb / Ex tb IIIC 85℃ Db |
| Suitable to Zone : Zone 1 & 2 / Zone 21 & 22 |
| Protection : IP66 as per IEC 60529: 2001 |
| Model: As below |
| Pressure Range: Vacum ( -1 to 0 bar) OR Up to (0 to 400 bar) |
| Sensor: piezo resistive pressure sensor SS316 |
| Differential: Fixed Or Adjstable by progrma keys. |
| Setting :Internal Keys |
| Enclosure: Die cast Aluminum |
| Display: 7 Segment LED Display |
| Power supply: 24V DC |
| Electrical rating: Relay output 5A x 1 nos. (C-NO-NC) (Realy 2 Optional)
Analog output : 4-20 mA ( Re transmition – Optional) |
| Display: 7 Segment LED Display |
| Proof Pressure : 150% of FS |
| Working Temp: Max 100 Deg. C |
| Process Connection: 1/2″ BSP (M) |
| Cable entry: M20 x 1.5P X 2Nos |
| Terminals : Suitable to 2.5 Sqmm x 10 nos |
| Mounting: Direct |
| Pressure Switch Model and Pressure Range | |||
| Model | Pressure Range | Model | Pressure Range |
| STFFV-E-01 | (-1) to 0 bar | STFFP- E- P10 | 0 to 10 bar |
| STFFC-E-01 | (-1) to 1 bar | STFFP- E- P20 | 0 to 20 bar |
| STFFP- E- M100 | 0 to 100 mbar / 0 to 1000 MMWC | STFFP- E- P35 | 0 to 35 bar |
| STFFP- E- M350 | 0 to 100 mbar / 0 to 3500 MMWC | STFFP- E- P70 | 0 to 70 bar |
| STFFP- E- P01 | 0 to 1 bar | STFFP- E- P100 | 0 to 100 bar |
| STFFP- E- P02 | 0 to 2 bar | STFFP- E- P250 | 0 to 250 bar |
| STFFP- E- P04 | 0 to 4 bar | STFFP- E- P400 | 0 to 400 bar |
| STFFP- E- P06 | 0 to 6 bar | ||
