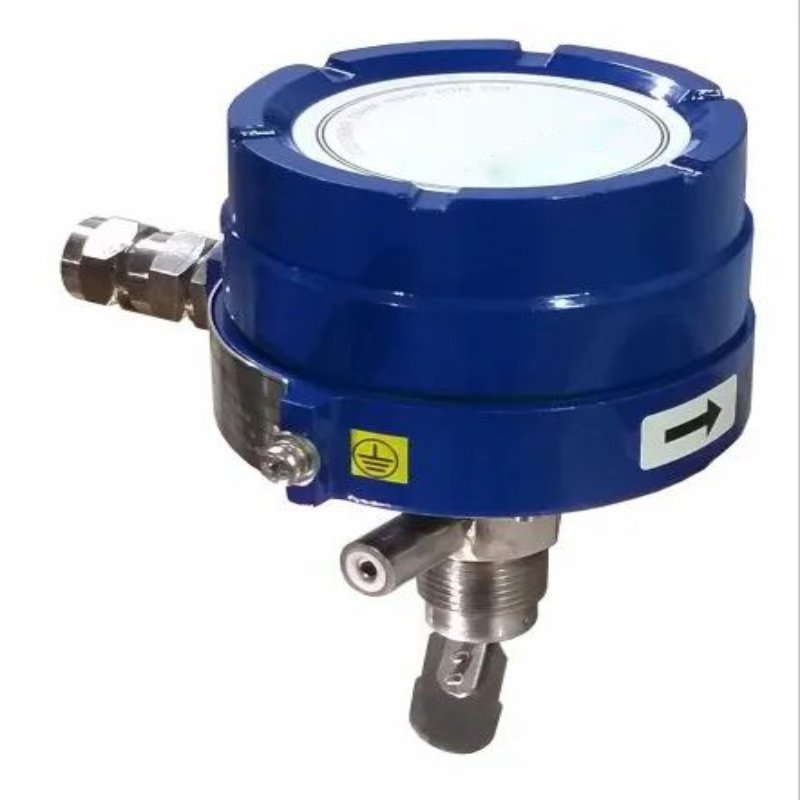

Flameproof Flow Switch
Product Details:
| Minimum Order Quantity | 1 Piece |
| Switch type | Paddle |
| Media | Water |
| Pipe size | Up to 150 MM |
| Body material | SS316 |
| Contact Material | Silver |
| Set flow | 50 m3/h |
| Max pressure | 25 bar |
| Contact type | SPDT |
| Electrical Connection | Screw Terminals |
| Contact System Type | SPDT |
Product and Description: Flame proof Flow switch Exd IP67
Enclosure: Exd IIA IIB as per IS/IEC 60079-1:2007 & IS/IEC 60079-0:2004
Sensing Elements: SS316 Paddle with SS Flapper
Setting : Adjustable with setting screw.
Micro switch – 1SPDT Contact 5A / 15A -230V AC OR
Wetted Part: SS316
Process Connection: 1″ BSP(M) SS316
Mounting: Direct
Cable entry: 3/4″ ET x1
