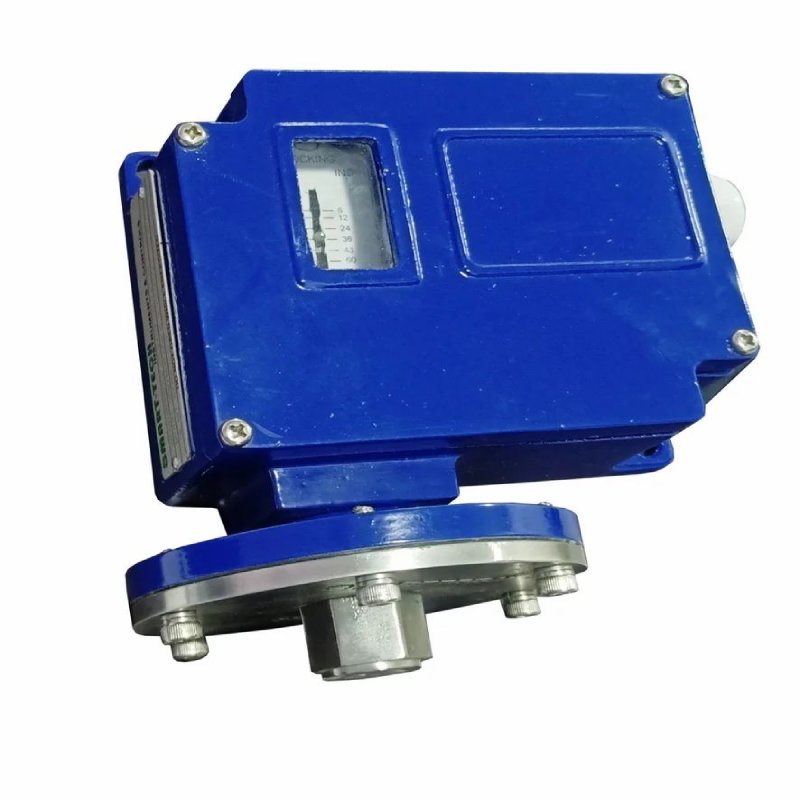

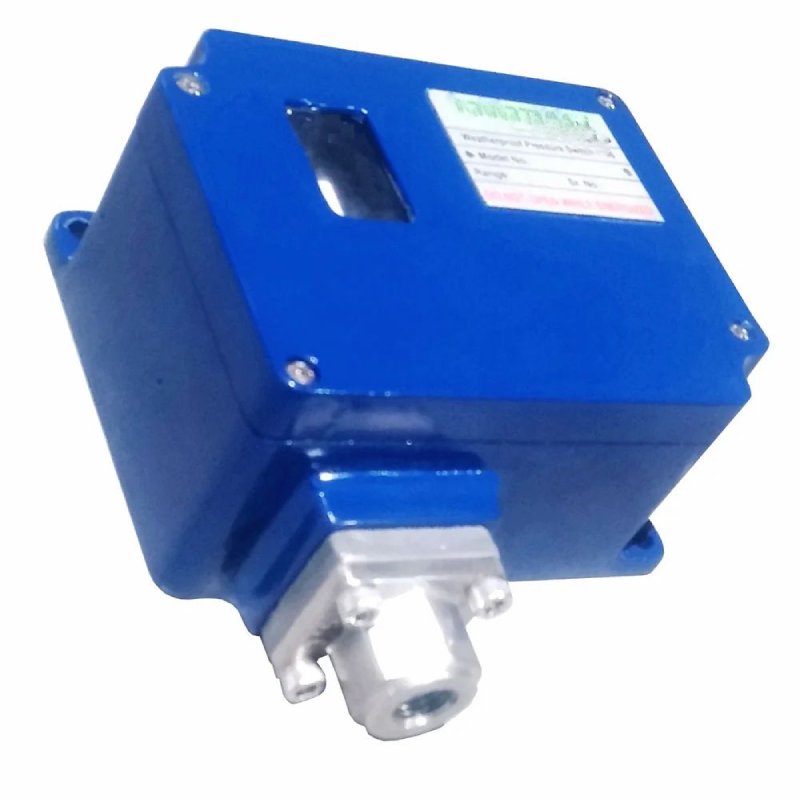

Weather Proof Pressure Switches
Product Details:
| Minimum Order Quantity | 5 Piece |
| Enclosure Rating | IP66 |
| Pressure Range | 0–400 bar |
| Contact Material | Silver |
| Body Material | Die Cast Aluminium |
| Contact Type | SPDT |
| Cable Entry | M20 |
| Electrical Connection | Screw Terminals |
| Contact System Type | SPDT |
| Range Setting | Adjustable |
| Media Type | All Media |
Offered to the clients is a high quality range of Weather Proof Pressure Switches as per their specific requirements. Our range of Weather Proof Pressure Switches has weather-proof enclosure. Moreover, these products are highly demanded in the market for its precision adjustment, better stability and rugged design.
Technical specifications are as follows:
- Range: As required
- Sensing Elements: Diaphragm/Piston SS316L
- Wetted Part: SS 316
- Enclosure: Weather proof
- Protection: IP65
- Enclosure: Die cast aluminum
- Micro switch: SPDT / 2SPDT Contact
- Electrical rating: 5A/15A250 VAC ,
- Repeatability: + – 1 % of FS
- Scale accuracy: +-3% of FS
- Differential: Fixed/Adjustable type
- Process Connection: 1/4″ BSP(F)
- Cable entry: 3/4″ ET
- Mounting: Wall/Pipe
