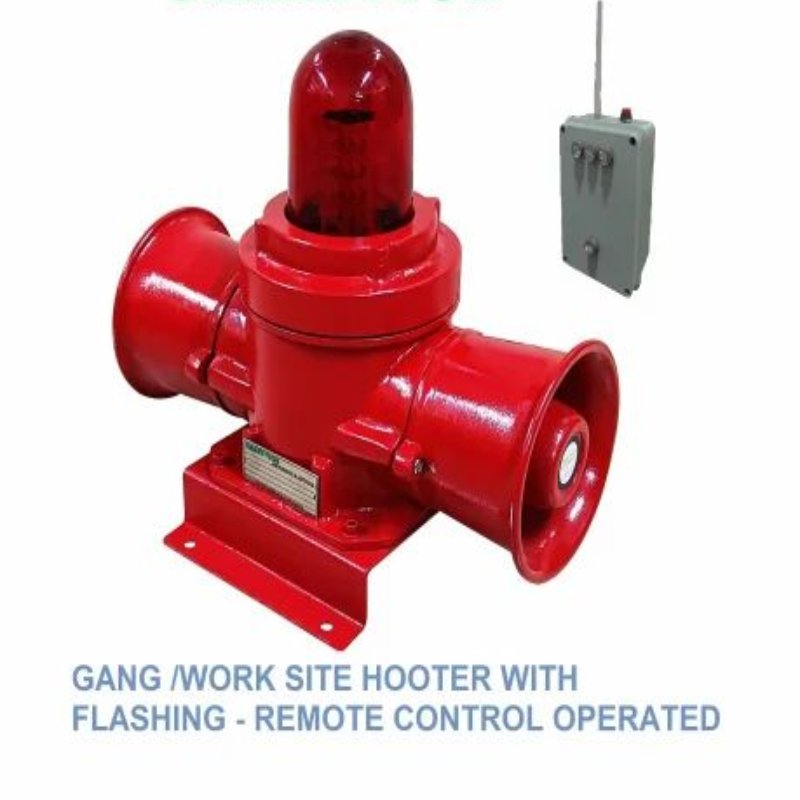

Gang Worksite Remote Control Hooter With Flashing Light
Product Details:
| Minimum Order Quantity | 1 Piece |
| Application | Gang men alert |
| System Type | FOR RAILWAY TRACK GANG MEN ALERT M |
| Siren Type | Remote operated Portable Electronic Hooter |
| Communication Type | RF |
| Operating Voltage | Battery operated |
| Power Source | Battery |
| Sound Level | Above 110 DB |
| Material | Aluminium |
| Mounting Type | Floor mount |
| Alarm Range | 1000 m |
Battery operated rechargeable Gang / Worksite hooter with Flasher
Product Description:-
Wireless – Portable Alarm Horn Sounder with flashing beacons
Hooter Housing
Degree of protection: IP66 as per IEC 60529:2001
MOC: Die cast Aluminium
Earthing: 1 no inside & 2 nos. External
Cable Entry: 1 nos. size M20 X 1.5P with polyamide cable gland and charging cord.
Mounting: Base Mount with base plate to rest the systems.
Colour – PO Red Epoxy powder coating + paint
Charging Power supply 230V AC
Battery and Receiver on the Hooter body
Battery Lithium Ion 12V 4AH with Inbuilt BMS
Battery Charger Ckt. with relay unit
Trans. receiver with antenna and its electronics
Hooter:
Dual Speaker arrangement on the Housing
Sound output: SPL at 1KHz 110dB/10W/1m
Input Power: 10W RMS/ 13W Impedance: 8 Ohms.
Frequency Response: 300-5000 Hz
Flashing light
Navigational Blinking Illumination light
LED:48 Nos. High intense colour LED used in the circuit.
Light Intensity: 600 to 630nM
Viewing Angle:360 Deg.
Operating temperature range: Up to 70 Deg. C
Sealed water-proof unit conforming to IP66 standards
Casing with sealed toughened Type A Glass Red Colour
Remote Control
Housing – ABS plastic – Light weight and easy to carry.
Inuilt : Battery and battery charger with transmitter
Remote Push button -1 to operate Hooter will be fixed at the side of the housing.
Indicating Lamps 1 nos. on the remote body will glow which indicates signal reach to the hooter?
Indicating Lamps 3 Nos. – which indicating the charging conditions of Hooter unit.
